Zoll AED Pro

Zoll AED Pro

$3,378.00 USD
$3,378.00 USD
Sale Sold out

View full details

Zoll AED Pro Features

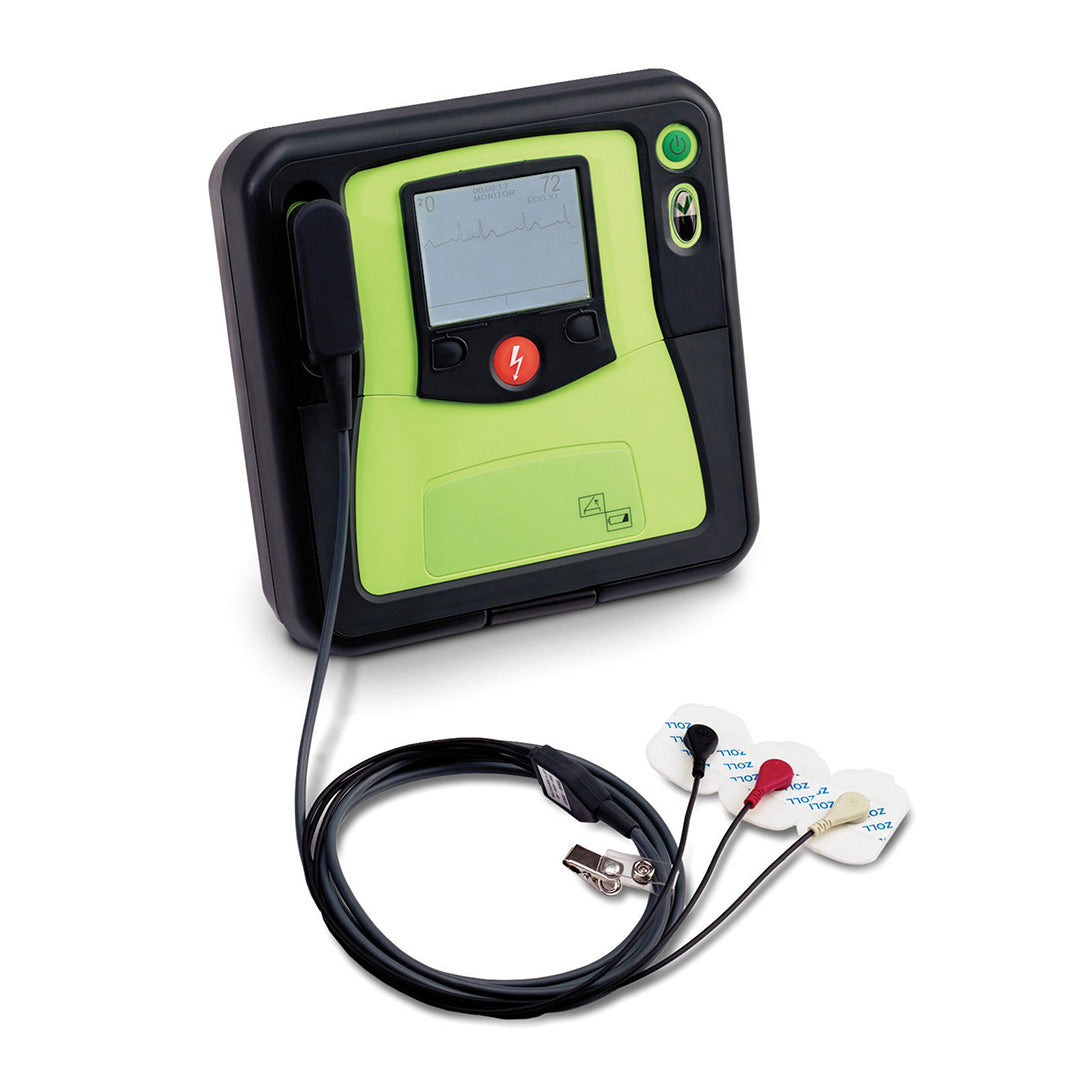

The Zoll AED Pro is equipped with advanced features to support both Basic Life Support (BLS) and Advanced Life Support (ALS). Its high-resolution LCD display enables responders to view the patient’s ECG clearly, using a 3-lead monitoring cable. The device is designed for durability with rubber over-molds, making it suitable for harsh environments. It also uses the unique one-piece CPR-D padz for straightforward pad placement.

  • High-Quality Display: Provides clear visualization of the patient's ECG.
  • ECG Monitoring: Utilizes a 3-lead cable for real-time heart activity monitoring.
  • Manual Override: Offers options for ALS professionals to manually manage defibrillation.
  • Data Storage and Transfer: Internal memory with IrDA or USB for easy data transfer.
  • CPR Feedback: Gives real-time feedback on chest compressions through the CPR-D padz.

Zoll AED Pro Specifications

Dimensions

  • Height: 3” (7.6 cm)
  • Width: 9.2” (24.1 cm)
  • Depth: 9.4” (23.9 cm)
  • Weight: 6.5 lbs (2.9 kg)

Defibrillator

  • Waveform: ZOLL Rectilinear Biphasic waveform.
  • Energy: 50, 70, 85 (pediatric), 120, 150, 200 joules (adult) preconfigured.
  • Charge Time: Less than 10 seconds with a new fully charged battery. Depleted batteries will result in a longer defibrillator charge time.
  • Energy Display: The monitor display indicates selected energy in manual mode only.
  • AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts.
  • Electrodes: CPR-D padz, stat padz II, and Pediatric pedi padz II packaged in pairs. CPR-D padz one-piece electrode provides feedback on the rate and depth of chest compressions.

Display

  • Screen Type: High-resolution LCD display.
  • Screen Size: 3.02 inches W x 2.27 inches H.
  • Sweep Speed: 25 mm/sec.
  • Viewing Time: 3 seconds.
  • Displayed Information: Heart rate, ECG waveform, text prompts, CPR bar graph, battery gauge, elapsed time, number of shocks delivered.

ECG Monitoring

  • Patient Connection: 3-lead ECG cable.
  • Input Selection: Fully defibrillator protected.
  • ECG Size: Automatic Control (AUD) gain.
  • Heart Rate: 30-300 bpm ±5%.

Battery

  • Type: Rechargeable, sealed lead acid.
  • Recharge Time: 4 hours or less with a ZOLL PowerCharger 4×4 or 1×1 Battery Charger.
  • Operating Time: For a new, fully charged battery pack at 20º C: 170 defibrillator discharges at maximum energy, or 6 hours of continuous ECG monitoring.
  • Type: Sealed, disposable lithium manganese.
  • Operating Time: 300 defibrillator charges at maximum energy or 13 hours of continuous ECG monitoring.

Environmental

  • Operating Temperature: 0º C to 50º C.
  • Storage and Shipping Temperature: -30º C to 70º C.
  • Humidity: 10% to 95% relative humidity, non-condensing.
  • Vibration: MIL Std. 810F, Minimum Helicopter Test.
  • Shock: IEC 68-2-27; 100G.
  • Material/Water Ingress: IEC 60529, IP55.
  • Electromagnetic Compatibility (EMC): CISPR; 11 Class B Rated and Conducted Emissions.
  • Electromagnetic Immunity: AAMI DF-80; IEC 60601.
  • Electrostatic Discharge: IEC 61000-4-2.
  • Conducted Susceptibility: IEC 61000-4-6.
