Zoll

Zoll AED Plus

Zoll AED Plus

$2,021.00 USD
$2,021.00 USD
Sale Sold out

View full details

Zoll AED Plus Features

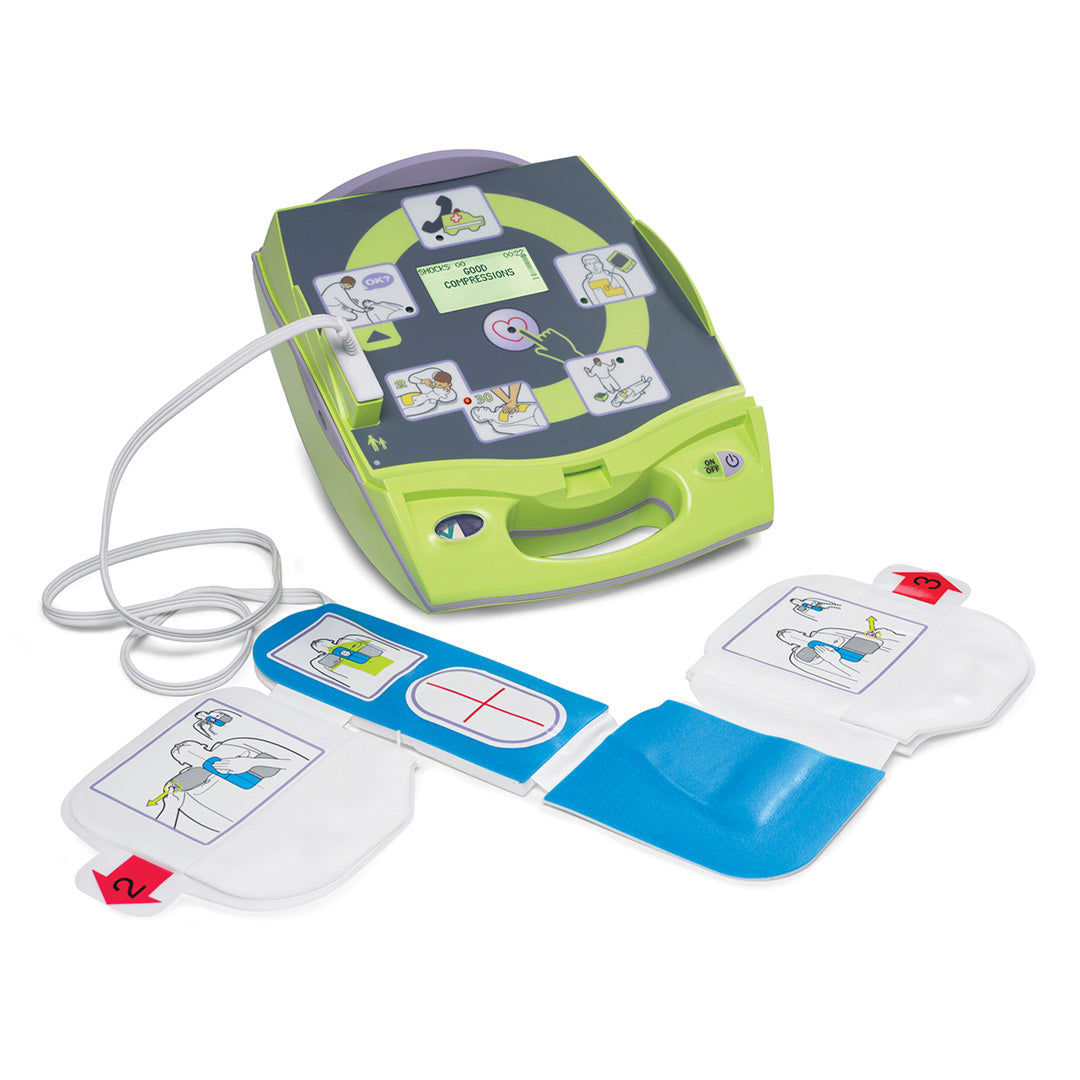

The Zoll AED Plus is a portable automated external defibrillator equipped with Zoll CPR-D Padz, which have a longer shelf life compared to many other defibrillation electrode pads. This device features Zoll's Real CPR technology, designed to enhance CPR performance by improving compression depth. The AED includes a graphical interface that uses pictures, text, and voice prompts to guide you through each step of patient resuscitation. Additionally, the AED's lid can be used to support the patient's head, helping to keep the airway open. The Zoll AED Plus is suitable for use with both adults and children.

  • Lid that provides passive airway support to maintain an open airway.
  • Backlit display that shows text along with every audio prompt.
  • Real CPR Help to aid rescuers in delivering effective CPR.
  • Economical ownership costs.

Zoll AED Plus Specifications

Dimensions

  • Height: 5.25” (13.3 cm)
  • Width: 9.5” (24.1 cm)
  • Depth: 11.5” (29.2 cm)
  • Weight: 6.7 lbs (3.1 kg)

Defibrillator

  • Waveform: ZOLL Rectilinear Biphasic
  • Defibrillator Charge Hold Time: 30 seconds
  • Energy Selection: Automatic pre-programmed selection (Adult Mode: 120J, 150J, 200J; Pediatric Mode: 50J, 70J, 85J)
  • Patient Safety: All patient connections are electrically isolated
  • Charge Time: Less than 10 seconds with new batteries
  • Electrodes: ZOLL CPR-D padz, pedi padz II, or stat padz II
  • CPR: Metronome Rate: Variable 60 to 100 CPM
  • Depth: 3/4” to 3”; 1.9 to 7.6 cm
  • Defibrillation Advisory: Evaluate electrode connection and patient ECG to determine if defibrillation is required. Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, and 200 BPM for pediatrics. For ECG Analysis Algorithm sensitivity and specificity, refer to AED Plus Administrator’s Guide.
  • Patient Impedance Measurement Range: 0 to 300 ohms
  • Defibrillator: Protected ECG Circuitry

Display

  • Display Format: Optional LCD with Moving Bar
  • Size: 2.6” x 1.3”; 6.6 cm x 3.3 cm
  • Display Sweep Speed: 25 mm/sec; 1”/sec

Batteries

  • Type: User-replaceable batteries. 10 Type 123A Photo Flash lithium manganese dioxide batteries.
  • Battery Capacity: Typical new (20°C) = stand-by life with batteries installed: 5 years (300 ±5 continuous shocks: 250 ±5 shocks before the “change battery” indicator and 50 ±5 shocks after the “change battery” indicator) or 13 hours of continuous monitoring time. For AED Plus units running software version 5.32 or higher, replace batteries every 5 years, or if the unit prompts. For earlier versions, please replace batteries every 3 years.

PC Requirements

  • Requirements for Configuration and Patient Data Recovery: Windows 98, Windows 2000, Windows NT, Windows XP, IBM compatible PII with 16550 UART (or higher) computer. 64MB RAM. VGA monitor or better. CD-ROM drive. IrDA port. 20MB disk space.
