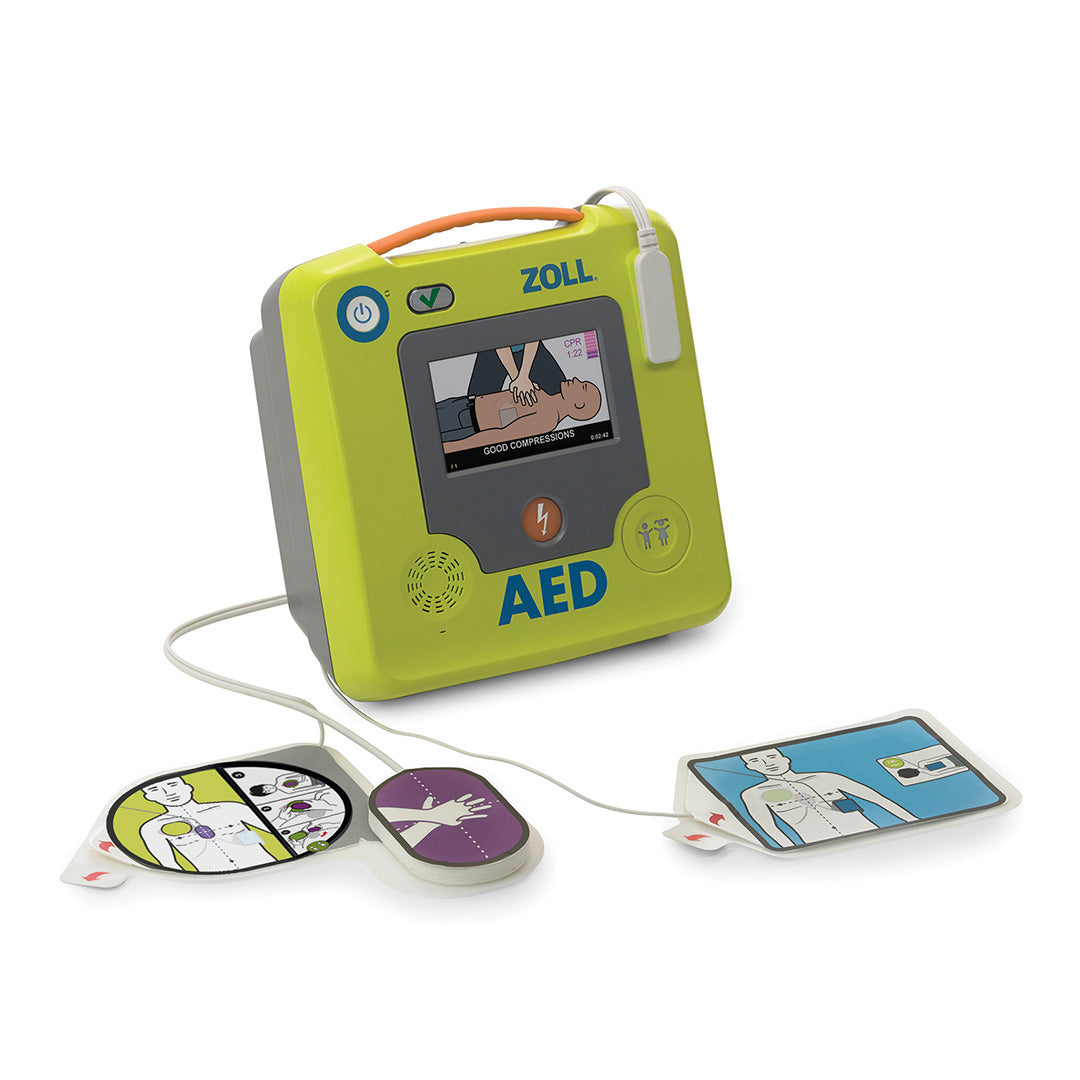

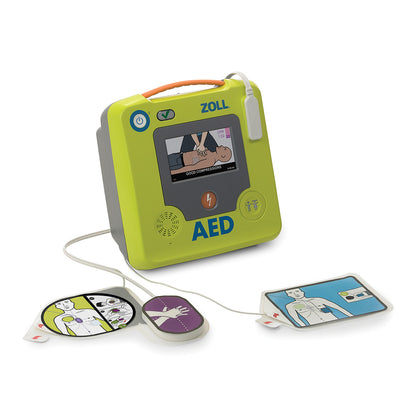

• Zoll AED 3 - Automatic External Defibrillator with Pads - AED on Sale
1 2

Zoll

Zoll AED 3

Zoll AED 3

$2,240.00 USD
$2,240.00 USD
Sale Sold out

View full details

Zoll AED 3 Features

The Zoll AED 3 is a state-of-the-art automatic external defibrillator featuring advanced Zoll Real CPR Technology. This device includes a user-friendly LCD touchscreen that guides users through CPR and defibrillation with visual prompts and real-time feedback to enhance the quality of care. Equipped with both adult and pediatric electrode pads, the AED determines if a shock is necessary and offers Wi-Fi connectivity for seamless data transfer to other medical devices.

  • Real CPR Technology: Ensures compressions are performed at the correct rate and depth.
  • Universal CPR Uni-pads: Detect and report the motion of chest compressions, suitable for both adults and children.
  • Constant Metronome: Maintains a rate of at least 100 compressions per minute to align with current AHA/CPR guidelines.
  • Child Rescue Button: Easily switch to child mode with a dedicated button on the front.
  • Dual Orientation: Offers optimal screen visibility in either upright or flat positions.

Zoll AED 3 Specifications

Dimensions

  • Height: 5 in ( 12.7 cm)
  • Width: 9.3 in (23.6 cm)
  • Depth: 9.7 in (24.7 cm)
  • Weight: 5.5 lbs (2.5kg)

Defibrillator

  • Protocol: Semiautomatic and Fully Automatic configuration
  • Waveform: ZOLL Rectilinear Biphasic
  • Defibrillator Charge Hold Time: 30 seconds; ZOLL AED 3 Automatic model: 3 seconds prior to automatic shock delivery
  • Energy Selection: Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J)
  • Patient Safety: All patient connections are electrically isolated
  • Charge Time: Less than 10 seconds with a new battery Pre-shock Pause: 8 seconds with a new battery
  • Electrodes: ZOLL CPR Uni-padz
  • Self-test: Configurable automatic self-test every day or every 7 days. Default: every 7 days. Monthly full energy test (200 J).
  • Automatic self-test Checks: Battery capacity, status, and expiration; electrode connection and expiration; ECG and charge/ discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
  • Compression Depth: 1.9 cm to 10.2 cm; 0.75 in to 4 in (adult patients only)
  • Defibrillation Advisory: Evaluate the defibrillation pad connection and patient ECG to determine if defibrillation is required.
  • Defibrillator: Protected ECG circuitry
  • Display Format: High-resolution LCD with capacitive touch panel
  • Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
  • Data Recording and Storage: User-configurable for 1 or 2 clinical events for a total of 120 minutes. Includes ECG, impedance measurements, device prompts, and CPR data.
  • Data Recovery: Controlled by touchscreen, uploaded to the USB memory stick, or ZOLL Case Review™ over a Wi-Fi network
  • Internal Clock Synchronisation: Coordinated Universal Time (UTC) synchronization occurs when communicating with the ZOLL Online server.

Environmental

  • Operating Temperature: 0° to 50°C; 32° to 122°F
  • Storage Temperature: -30° to 70°C; -22° to 158°F
  • Humidity: 10% to 95% relative humidity, non-condensing

Battery

  • Type: Disposable, sealed lithium manganese dioxide
  • Battery Standby Life (once installed): 5 years with weekly self-test. End of life indicated by blank status window (typical remaining shocks: 9).
  • Battery Shelf Life: Store for up to 2 years at 23°C (77°F) prior to installing in AED 3 to maintain the battery life.
  • Temperature : 0°C to 50°C (32°F to 122°F)
  • Humidity: 10% to 95% (non-condensing)
  • Weight: 317.5 grams; 0.7 lbs Size: (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
  • Nominal Voltage: 12 volts

Zoll AED 3 Compatibility

Accessories

  • CPR Uni-padz 8900-000280-01
  • CPR-D padz 8900-0800-01
  • CPR Stat-padz 8900-0402
  • Stat-padz II 8900-0801-01
  • Pedi-padz II 8900-0810-01
  • AED 3 Battery Pack 8000-000696
