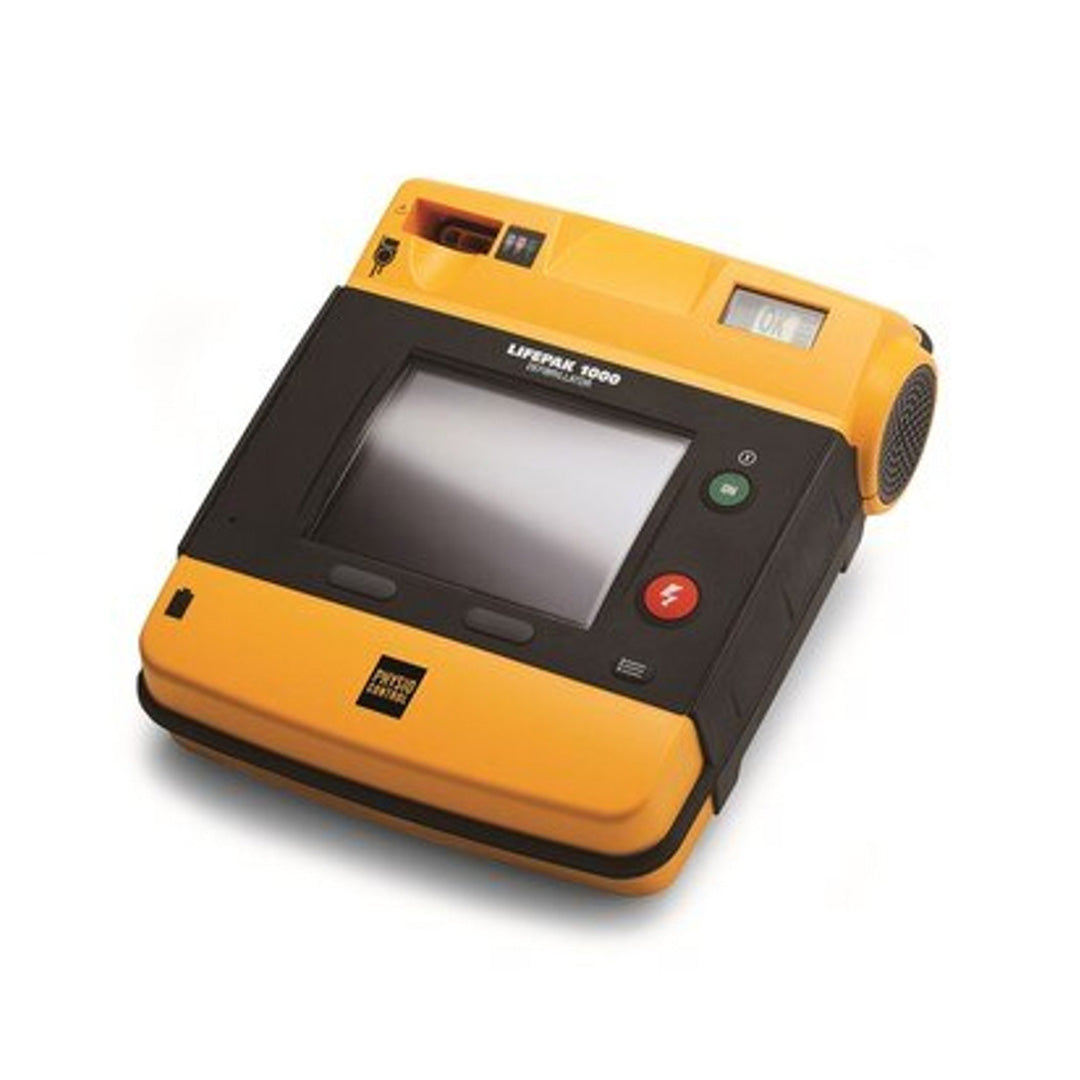

Stryker Physio-Control Lifepak 1000

Stryker Physio-Control Lifepak 1000

$3,701.00 USD
$3,701.00 USD
Sale Sold out

View full details

Stryker Physio-Control Lifepak 1000 Features

The Stryker Physio-Control Lifepak 1000 is a rugged and highly versatile automated external defibrillator (AED) designed for professional responders. Its durable design and advanced features make it an ideal choice for demanding environments, ensuring reliable performance during critical cardiac emergencies.

  • Adaptive Bifasic Technology: Delivers personalized shock energy tailored to the patient’s needs.
  • Intuitive Display: Features a large, high-contrast screen that displays critical information clearly, with optional ECG readings and prompts.
  • Rugged Construction: Built to withstand extreme conditions, with a high drop resistance and IP55 rating for protection against water and dust, making it suitable for outdoor and industrial environments.
  • CPR Metronome: Provides real-time guidance on the correct pace for chest compressions, helping to maintain effective CPR throughout the rescue.
  • Flexible Energy Settings: Allows for energy levels to be adjusted by the user, providing flexibility for different patient scenarios and responder preferences.
  • Event Data Recording: Stores detailed event data, including ECG, shocks delivered, and CPR performance, for post-event review and ongoing training.
  • Upgradeable Firmware: Supports firmware updates to keep the device current with the latest clinical protocols and guidelines.

Stryker Physio-Control Lifepak 1000 Specifications

Dimensions

  • Height: 3.4 in (8.7cm)
  • Width: 9.2 in (23.4 cm)
  • Depth: 10.9 in (27.2 cm)
  • Weight: 7.1 lb (3.2 kg) with non-chargeable battery and REDI-PAK electrodes

Display

  • Size: 120 mm (4.7 in.) x 89 mm (3.5 in)
  • Display Type: 320 dot x 240 dot LCD with backlight
  • Frequency Response: 0.55 Hz to 21 Hz (-3 dB), nominal
  • Waveform Sweep Speed: 25 mm/sec for ECG, nominal
  • Waveform viewing time: Minimum 4 seconds
  • Waveform Amplitude: 1 cm/mV, nominal
  • Display Range Differential: ±1.4 mV full scale, nominal
  • Heart Rate: 20 to 300 BPM digital display

ECG Mode

  • ECG Display Provides a nondiagnostic ECG display of the patient’s heart rhythm.

Manual Mode

  • Energy Sequence Delivers energy at levels selected in Setup mode
  • Charge Time Charge time:

AED Mode

  • Shock Advisory System (SAS): ECG Analysis system that advises whether a shock is appropriate, meets rhythm recognition criteria specified in DF80 and IEC 60601-2-4. In AED mode, the device allows a shock only if SAS advises defibrillation.
  • Shock Ready Time to first shock:
  • Energy Sequence: Multiple levels, configurable from 150 to 360 joules
  • Shock-to-Shock cycle time:
  • Time for a 3-shock sequence:

With Infant/Child Pads

  • The following specifications apply from 25 to 175 ohms
  • Energy Accuracy (into 50 ohms):

With Adult Pads

  • Patient Impedance Range: 10 – 300 ohms
  • The following specifications apply from 25 to 175 ohms.

Energy Accuracy

  • 10% of the energy setting into 50 ohms
  • 15% of the rated energy output into 25 – 175 ohms

Waveform

  • Biphasic Truncated Exponential with voltage and duration compensation for patient impedance.

Stryker Physio-Control Lifepak 1000 Compatibility
