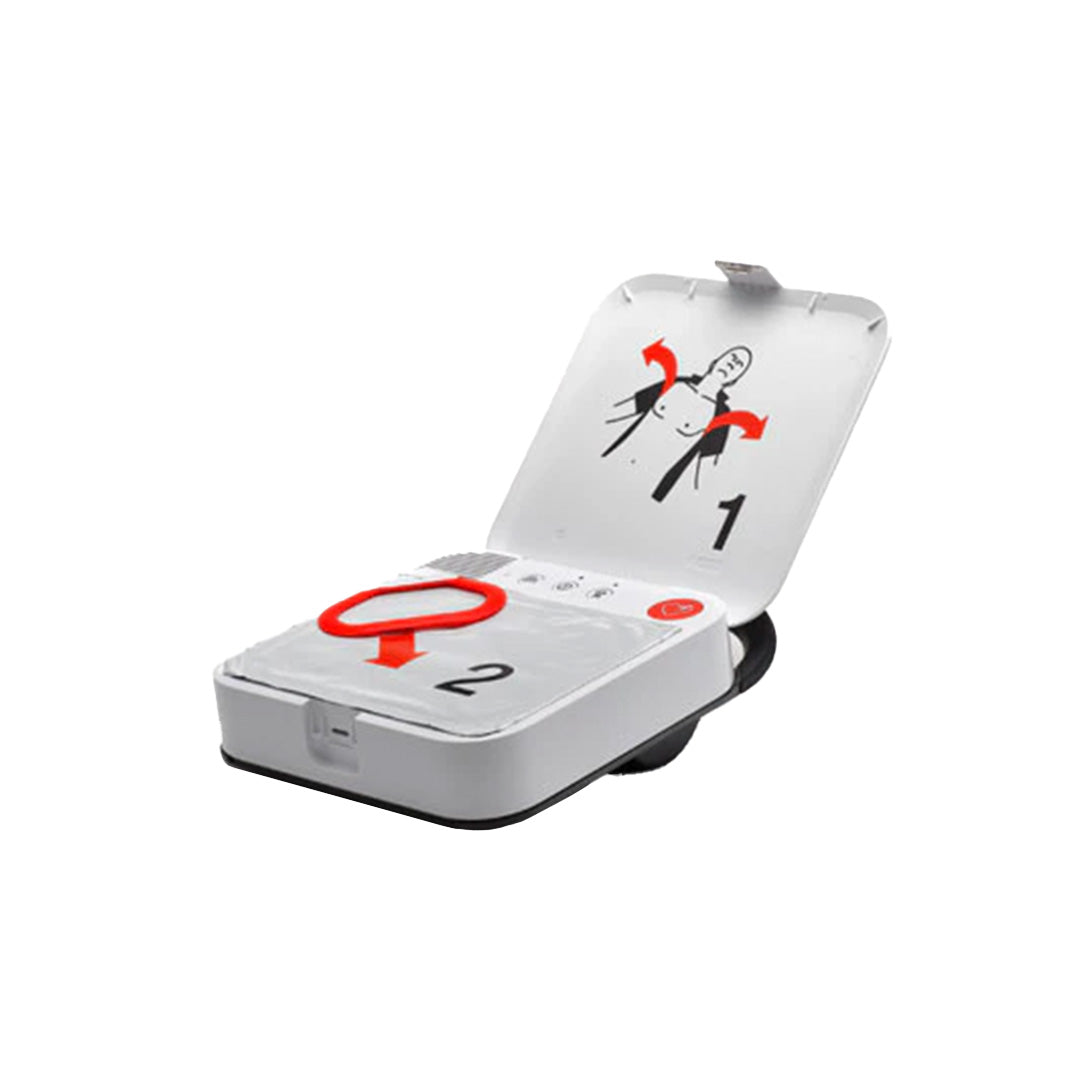

Stryker Physio-Control Lifepak CR2

Stryker Physio-Control Lifepak CR2

$2,255.90 USD
$2,255.90 USD
Sale Sold out

View full details

Stryker Physio-Control Lifepak CR2 Features

The Stryker Physio-Control Lifepak CR2 is an advanced automated external defibrillator (AED) designed for use by both lay responders and professionals. Its innovative technology and user-friendly features ensure quick and effective response during sudden cardiac arrest emergencies.

  • CPRInsight™ Analysis: Allows for continuous chest compressions during ECG rhythm analysis, reducing interruptions and increasing the chances of successful resuscitation.
  • ClearVoice™ Guidance: Provides clear, step-by-step voice prompts and visual cues to guide rescuers through the defibrillation and CPR process.
  • Wi-Fi Connectivity: Equipped with Wi-Fi capabilities for automatic device monitoring, software updates, and data transmission to emergency services, ensuring the device is always ready for use.
  • Self-Monitoring System: Conducts regular self-tests to ensure the AED is in optimal working condition, with indicators.
  • Child Mode: Features a child mode with a simple button press that adjusts the energy levels and prompts for pediatric patients.
  • Language Option: Offers the ability to switch between two languages with a push of a button, accommodating diverse user needs in multicultural environments.

Stryker Physio-Control Lifepak CR2 Specifications

Dimensions

  • Height: 3.8 in (9.7 cm)
  • Width: 8.9 in (22.6 cm)
  • Depth: 10.8 in (27.4 cm)
  • Weight: 4.5 lbs (2.0 kg)

Battery

  • Type: Lithium manganese dioxide, 12.0 v, 4.7 amp-hours
  • Capacity: Provides 166 200 joule shocks ( with one minute of CRP between shocks) or 103 360 joules chocks (with one minute of CPR between chocks) or 800 minutes of operating time
  • Replace Battery Indication: At least 6 shocks and 30 minutes of operation time remain when first indicated

Electrode pads

  • Pads: Can be used on both adult and pediatric patients<//li>
  • Pads Packaging: User-intuitive, rapid access electrodes
  • Pad Replacement: Replace every 4 years or after each patient use

Environment

  • Operating Temperature: +32° to +122°F (0° to +50°C).
  • Storage Temperature: -22° to +140°F
    (-30° to +60°C) with battery and electrodes, maximum exposure time limited to one week.
  • Long-Term Storage: Always store the defibrillator within the recommended temperature range of 59° to 95°F (15° to 35°C).
  • Altitude: -1,253 to 15,000 ft (-382 to 4,572 m).
  • Relative Humidity: 5 to 95% (non-condensing).
  • Dust and Water Resistance: IEC 60529/ EN 60529 IP55 with electrodes connected and battery installed.
  • Shock: IEC 60068-2-27, (40g, 11 ms pulse, ½ sine each axis).
  • Vibration: MIL-STD-810G, method 514.6, helicopter – category 14, and ground vehicle – category 20.

User Interface

  • User Interface: The user interface includes voice prompts and audible tones.
  • ClearVoice Technology: Detects background noise and adjusts audio and voice prompts to ensure they can be heard clearly in noisy environments.
  • Device Status Indicators: Visual and audible indicators indicating system readiness (device, pads, and battery).

Data Storage

  • Memory Type: Internal digital memory (flash RAM).
  • ECG Storage: Minimum 60 minutes of ECG stored for two patient episodes.

Communications

  • Communications: USB, Wireless 802.11 b/g/n data transfer to LIFELINK central AED program manager or LIFENET System.
