Philips

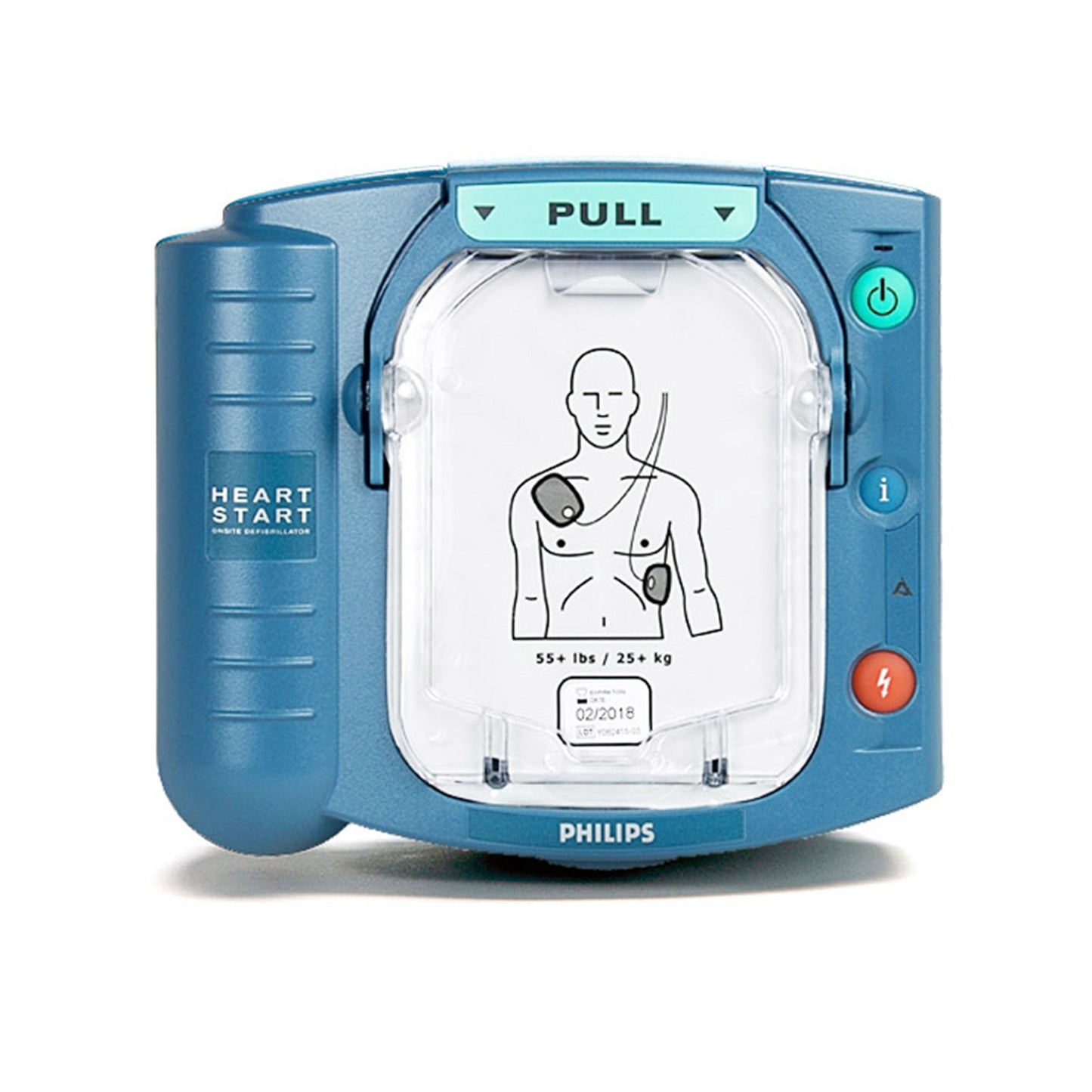

Philips Heartstart Onsite

Philips Heartstart Onsite

$1,479.00 USD
$1,479.00 USD
Sale Sold out

View full details

Philips Heartstart Onsite Features

The Philips HeartStart Onsite is a user-friendly and reliable automated external defibrillator (AED) designed for quick response during sudden cardiac arrest. Ideal for public spaces and workplaces, it combines simplicity with advanced technology to ensure effective intervention in emergencies

  • SMART Biphasic Therapy: Delivers biphasic shocks that are tailored to the patient’s condition, providing effective defibrillation while minimizing potential heart damage.
  • Step-by-Step Voice Instructions: Guides users through the defibrillation process with clear, calm voice prompts, making it accessible for individuals with no prior training.
  • Ready-to-Use Design: Comes pre-installed with battery and pads, ensuring the device is immediately ready for use.
  • Daily Self-Tests: Performs regular self-tests to check the device’s readiness, including battery status, pad connectivity, and internal circuitry.
  • Quick Shock Delivery: Capable of delivering a shock within seconds after the analysis, reducing pauses in CPR and enhancing the likelihood of successful resuscitation.
  • Integrated CPR Coaching: Provides real-time feedback and coaching for chest compressions, helping users perform effective CPR during resuscitation efforts.
  • Versatile Electrode Pads: The pads are suitable for both adults and children (with an optional Infant/Child Key), simplifying use and ensuring readiness for all patient types.
  • Event Data Storage: Records key event data, including ECG traces and shock delivery, for post-event analysis and training.

Philips Heartstart Onsite Specifications

Dimensions

  • Height: 2.8 inches (7 cm)
  • Width: 8.3 inches (21 cm)
  • Depth: 7.4 inches (19 cm)
  • Weight: With battery and pads case: 3.3 lbs (1.5 kg) Without battery or pads case: 2.4 lbs (1 kg)

Defibrillator

  • Defibrillator Family: HS1
  • Waveform: Truncated Exponential Biphasic. Waveform parameters are adjusted as a function of each patient’s impedance.
  • Energy: Single energy output. Adult: nominal 150 Joules into a 50-ohm load.Infant/Child: nominal 50 Joules into a 50-ohm load. Automatically set based on the type of SMART Pads cartridge installed.
  • Shock-to-Shock Cycle Time Typically less than 20 seconds between shocks in a series.
  • Quick Shock: Able to deliver a shock after the CPR pause, typically in 8 seconds.
  • Voice Instructions: Detailed voice messages guide the responder through the use of the defibrillator.
  • CPR Coaching: Instructions for adult and infant/child CPR are available at the user’s option.
  • Shock Delivery Via adhesive pads placed on the patient’s bare skin as illustrated on pads.
  • Controls: Green SMART Pads Cartridge handle, green on/off button, blue i-button, orange shock button.
  • Indicators: Ready light; blue i-button; caution light.

Environmental / Physical Specifications

  • Sealing: Solid objects per EN60529 class IP2X. Drip-proof per EN60529 class IPX1.
  • Temperature Operating: 32º – 122º F (0º- 50º C)
  • Humidity Operating: 0% to 95% relative,non-condensing
  • Altitude Operating: 0 to 15,000 feet
  • Shock/Drop: Abuse Withstands a 1-meter drop to any edge, corner, or surface.
  • Vibration: Meets EN1789 random and swept sine, road ambulance the specification in operating and standby states.
  • EMI (Radiated/Immunity) Meets EN55011 Group 1 Level B Class B and
  • EN61000-4-3.

Battery (M5070A)

  • Type: 9 Volt DC,4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells.
  • Capacity: Minimum 200 shocks or 4 hours of operating time.
  • Install-By Date: The battery is labeled with an install-by date of at least five years from the date of manufacture.
  • Standby Life: Four years is typical when the battery is installed by the install-by date. (Will power the AED in standby state within the specified standby temperature range, assuming one battery insertion test and no defibrillation uses.)

SMART Pads

  • Adult SMART Pads Cartridge: M5071A defibrillation pads for patients 8 years of age and older or 55 lbs. (25 kg) and over.
  • Infant/Child SMART Pads Cartridge: M5072A defibrillation pads for patients under 8 years of age or 55 lbs. (25 kg).Rx only.
  • Energy Delivered
  • Adult: nominal 150 Joules into a 50-ohm load.
  • Infant/Child: nominal 50 Joules into a 50-ohm load.
  • How Supplied: Disposable cartridge, containing adhesive defibrillation pads, clicks into the defibrillator for an integrated pads solution.
  • Active Surface Area: 13.2 in2 (85 cm2) each
  • Cable Length: Adult pads:54 in (137.1 cm)Infant/Child pads:40 in(101.6 cm)
  • Use-By Date: The cartridge is labeled with a use-by date of at least two
    years from the date of manufacture.

Philips Heartstart Onsite Compatibility

  • Philips HeartStart Onsite/Home/FRx Battery
  • Philips HeartStart Onsite Smart Adult Defibrillator Pads
  • Philips HeartStart Onsite Smart Pediatric Defibrillator Pads
