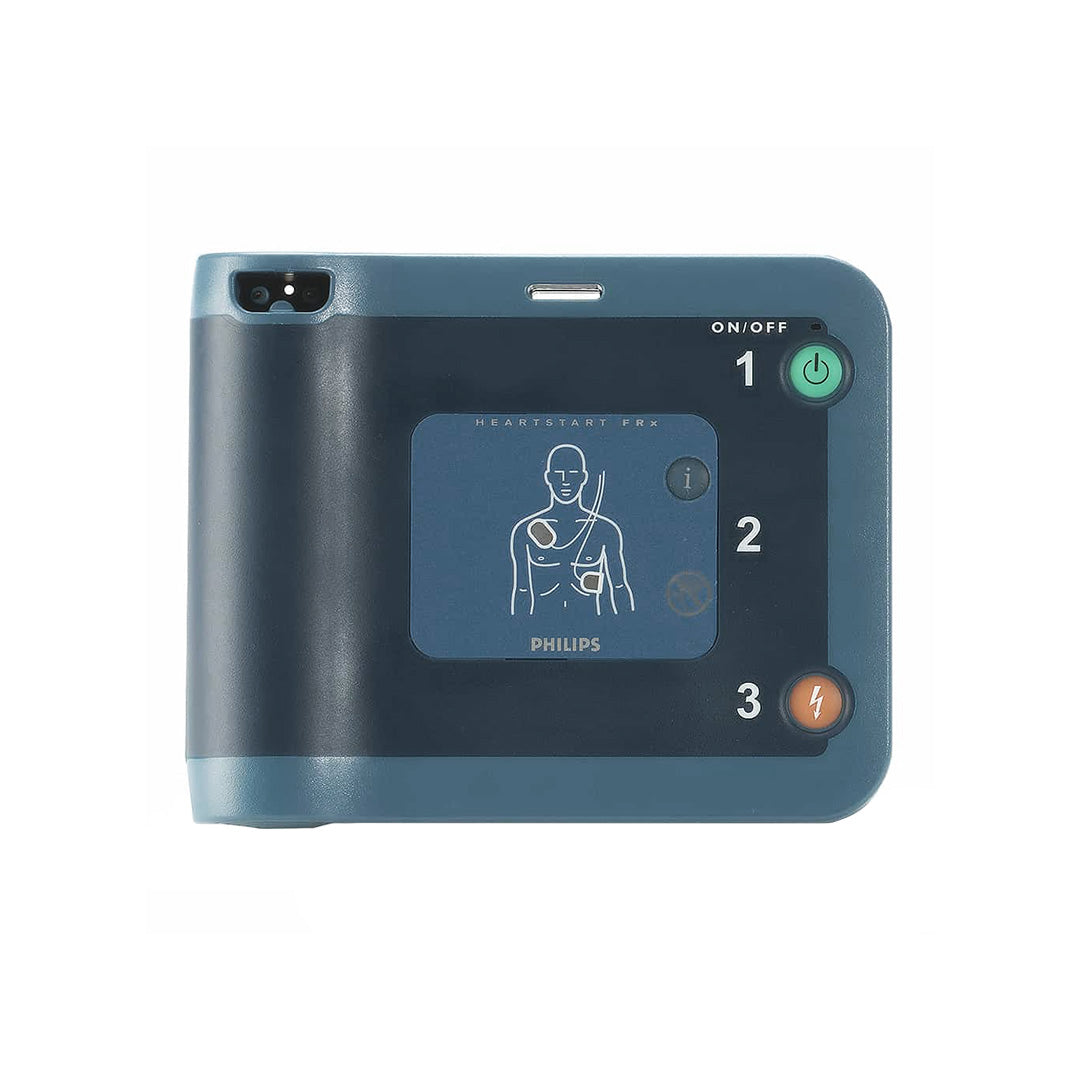

Philips Heartstart FRx

Philips Heartstart FRx

$1,944.00 USD
$1,944.00 USD
Sale Sold out

View full details

Philips Heartstart FRx Features

The Philips HeartStart FRx is a rugged and easy-to-use automated external defibrillator (AED) designed for both laypersons and professionals. Its intuitive features and robust design make it ideal for use in challenging environments, ensuring reliable performance during sudden cardiac arrest emergencies.

  • SMART Biphasic Therapy: Utilizes biphasic waveform technology that adjusts the energy level based on the patient’s needs, delivering effective shocks while minimizing heart muscle damage.
  • Clear Voice Instructions: Provides step-by-step voice prompts to guide users through the defibrillation process.
  • Infant/Child Key: Features an optional Infant/Child Key that adjusts the shock energy and CPR instructions for pediatric patients, eliminating the need for separate pediatric pads.
  • Daily Self-Tests: Conducts daily self-tests to ensure the device is always ready for use, checking the battery, pads, and internal circuitry.
  • Versatile Electrode Pads: The same electrode pads can be used on both adults and children (with the Infant/Child Key).
  • Data Management: Capable of storing event data, including ECG and shock information, for post-event analysis and review.

Philips Heartstart FRx Specifications

Dimensions

  • Height: 7.1″ ( 18cm)
  • Depth: 2.4″ (6 cm)
  • Width: 8.9″ (22 cm)
  • Weight: With battery and pads case: 3.5 lbs. (1.5 kg)

Environmental / Physical Requirements

  • Sealing: Waterjet proof IPX5 per IEC60529
  • Temperature: Operating/Standby: 32º – 122º F (0º- 50º C)
  • Altitude: 0 to 15,000 feet
  • Aircraft: Device: RTCA/DO-160D;1997
  • Crush: 500 pounds
  • Vibration Operating: meets MILSTD 810F Fig.514.5C-17, random;
  • EMI (radiated/ immunity): CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8

Battery (m5070A)

  • Aviation: 989803139301 (TSO C-142-U.S. only)
  • Type: 9 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life primary cell
  • Capacity: Minimum 200 shocks or 4 hours of operating time (EN 60601-2-4:2003)
  • Install-by date: The battery is labeled with an install-by date of at least 5 years from the date of manufacture
  • Standby life: Four years typical when the battery is installed by the install-by date. (Will power the AED in standby state within the specified standby temperature range, assuming 1 battery insertion test and no defibrillation uses)

Smart Pad II

  • Item number: 989803139261
  • Active surface area: 12.4?2 (80 cm2 ) each
  • Cable length: 48? (121.9 cm)
  • Use-by date: Pads case is labeled with a use-by date of at least 2 years from date of manufacture
  • Infant/Child Key: Item # 989803139311

Defibrillator

  • Defibrillator family Order 861304. Defibrillator, battery, SMART Pads II (1 set), Setup and Maintenance Guides, Owners Manual, Quick Reference Guide, Date sticker
  • HeartStart FRx Ready-Pack configuration: Order Option R01. Defibrillator, battery, carry case, SMART Pads II (1 pre-connected set, 1 spare set), Setup and Maintenance Guides, Owners Manual, Quick Reference Guide, Date Sticker
  • Waveform :Truncated Exponential Biphasic. Waveform parameters adjusted as a function of each patient’s impedance
  • Therapy Adult defibrillation: Peak current 32A (150 J nominal into a 50-ohm load). Pediatric defibrillation with optional FRx Infant/Child key installed: Peak current 19A (50 J nominal into 50-ohm load)
  • Protocol Device follows preconfigured settings. Defibrillation and CPR protocol can be customized using HeartStart Event Review software

User Interface

  • Instructions: Detailed voice prompts and visual icons guide the responder through the use of the defibrillator
  • CPR coaching: Voice coaching for adult and infant/child CPR provides instructions and audio cues for the appropriate number, rate, and depth of chest compressions, as well as for each breath
  • Controls: Green On/Off button, blue i-button, orange Shock button, optional Infant/Child key
  • Indicators: Ready light, blue i-button, caution light, illuminated pads, icons, Shock button lights up when shock is advised

Data Recording and Transmission

  • Infrared: Wireless transmission of event data to a Smartphone or PC, using the IrDA protocol
  • HeartStart Event Review Data management software (optional) for download and review of Software: data retrieved through the defibrillator’s infrared data port
  • Data stored: First 15 minutes of ECG and the entire incident’s events and analysis decisions

Philips Heartstart FRx Compatibility

  • Philips HeartStart OnSite/Home/FRx Battery
  • Philips HeartStart FRx Infant Child Key
