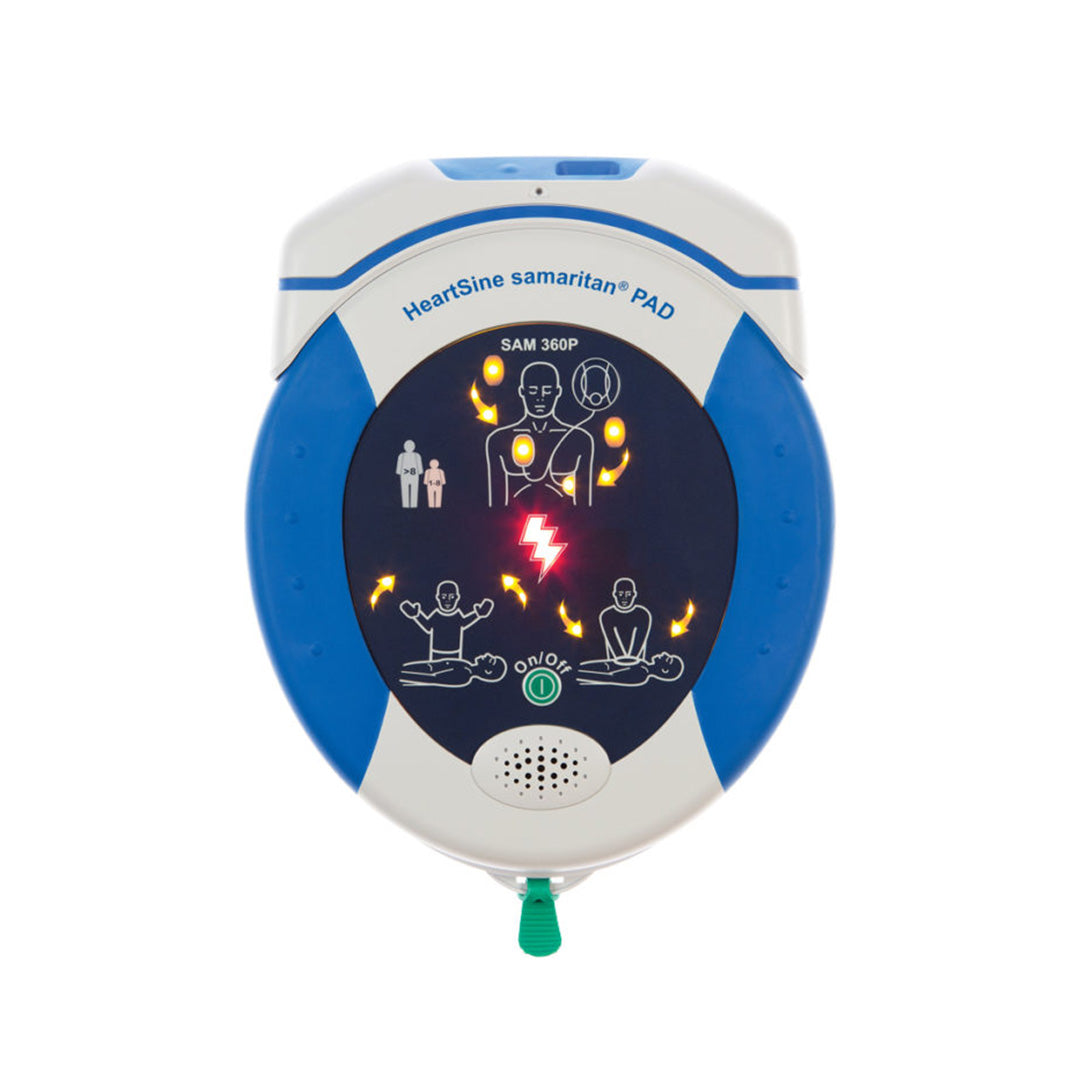

HeartSine Samaritan PAD 360P

HeartSine Samaritan PAD 360P

$1,651.10 USD
$1,651.10 USD
Sale Sold out

View full details

HeartSine Samaritan PAD 360P Features

The HeartSine Samaritan 360P AED is an automated external defibrillator that offers fully automatic operation, delivering a shock if needed without the need for user intervention. It features a compact and robust design, making it ideal for a wide range of environments. The 360P ensures that help is available at the touch of a button, making it a vital tool in cardiac emergencies.

  • Fully Automatic Shock Delivery: The device automatically delivers a shock if needed, without requiring the user to press a button.
  • Enhanced CPR Guidance: Provides clear visual and voice prompts to guide rescuers through the entire resuscitation process.
  • Compact and Portable: Weighing only 1.1 kg, it's easy to transport and store, making it accessible in various locations.
  • High IP Rating: With an IP56 rating, it offers robust protection against dust and water ingress, ensuring durability in tough environments.

HeartSine Samaritan PAD 360P Specifications

Physical Characteristics:

  • Weight: 1.1 kg (2.4 lbs) including Pad-Pak™
  • Dimensions: 20 cm x 18.4 cm x 4.8 cm (7.9 in x 7.25 in x 1.9 in)
  • Construction: High-impact, resistant materials
  • Ingress Protection Rating: IP56 (Dust and Water Resistant)

Defibrillator:

  • Waveform: Self-compensating output waveform
  • Energy Output:
  • Shock Advisory System: Evaluates patient’s ECG to determine if defibrillation is required
  • Charge Time: Typically 8 seconds to 150J
  • Shock Delivery: Automatically delivered without user intervention when appropriate

Environmental Operating Conditions:

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -10°C to 50°C (14°F to 122°F) with Pad-Pak™ installed
  • Relative Humidity: 5% to 95% non-condensing
  • Shock Resistance: MIL-STD-810F 516.5, Procedure I (40 Gs)
  • Vibration Resistance: MIL-STD-810F 514.5, Procedure I, Category 4 Truck Transportation & Category 7 Aircraft – Jet 15,000 feet

Battery and Pads:

  • Battery Type: Lithium Manganese Dioxide (LiMnO2)
  • Battery Capacity: Typically delivers 60 shocks or provides 6 hours of continuous monitoring
  • Pad-Pak: Includes both battery and electrodes
  • Shelf Life: 4 years from manufacture date

Electrodes:

  • Electrode Placement: Pre-connected to AED, placed on patient’s bare chest
  • Electrode Lifespan: 4 years (when stored according to instructions)
  • Pediatric Pad-Pak: Optional for use with patients under 8 years of age or under 25 kg (55 lbs)

Visual and Audio Prompts:

  • CPR Coaching: Voice prompts guide the user through the process, including the correct rate and depth of compressions
  • Status Indicators: LED indicators provide clear guidance on the status of the device and rescue process
  • Voice Prompts: Clear instructions are provided throughout the rescue, in a variety of selectable languages

Data Storage:

  • Internal Memory: Up to 90 minutes of ECG and event data stored
  • Data Retrieval: USB data cable (optional) for downloading data to a PC

HeartSine Samaritan PAD 360P Compatibility

  • HeartSine Samaritan Pad-Pak Adult Defibrillator Pads
  • HeartSine Samaritan Pad-Pak Pediatric Adult Pads
  • HeartSine Samaritan Gateway
