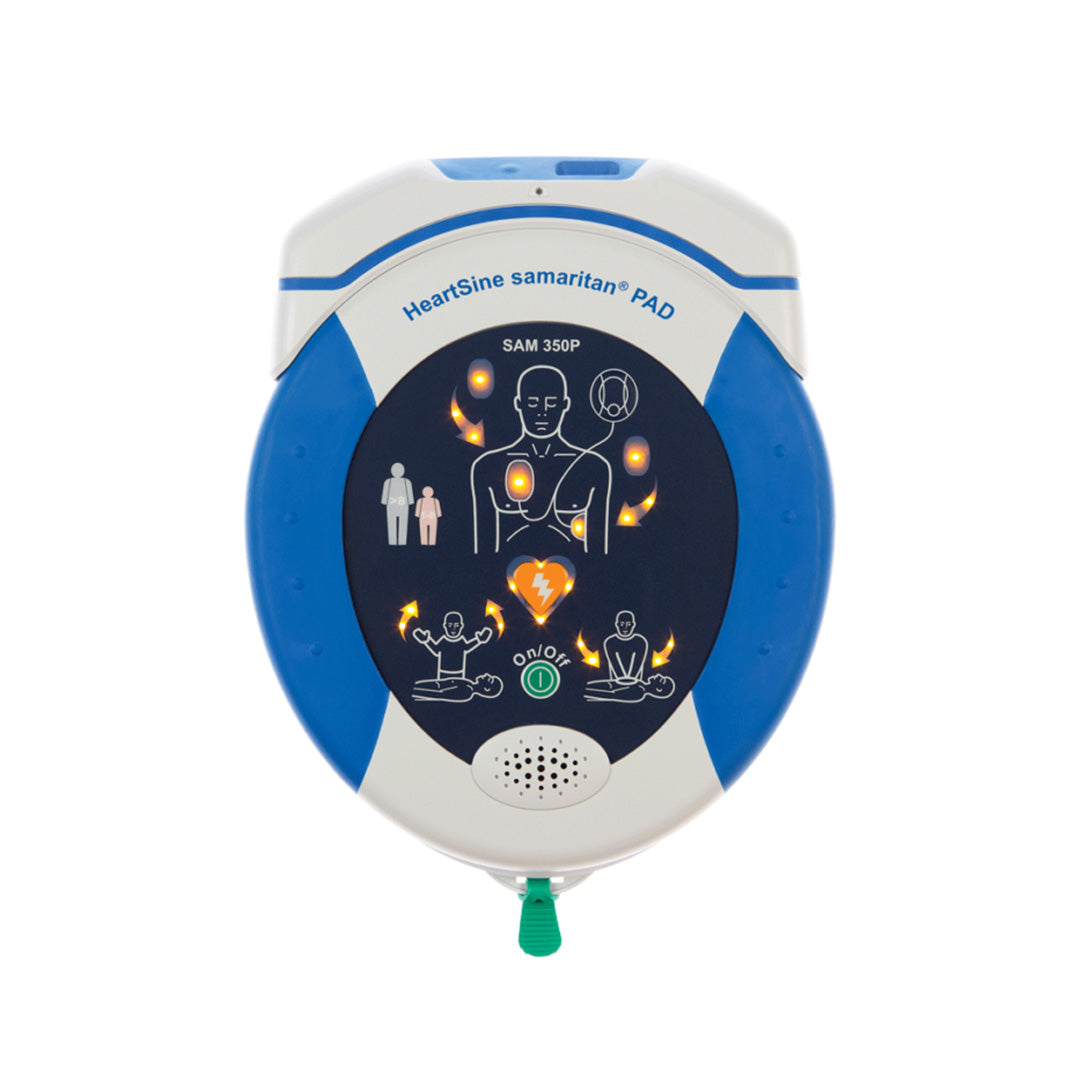

HeartSine Samaritan PAD 350P

HeartSine Samaritan PAD 350P

$1,410.75 USD
$1,410.75 USD
Sale Sold out

View full details

HeartSine Samaritan PAD 350P Features

The HeartSine Samaritan 350P AED is a user-friendly and compact automated external defibrillator designed for sudden cardiac arrest emergencies. It provides clear audio and visual instructions to guide users through the rescue process, making it suitable for both trained and untrained responders. Its lightweight and portable design ensures it's always ready for use, wherever and whenever needed.

  • Integrated CPR Coaching: Provides real-time feedback and voice prompts to assist the rescuer in performing effective CPR.
  • Durable Design: With an IP56 rating, it’s highly resistant to dust and water, making it suitable for use in challenging environments.
  • Low Maintenance: The device conducts regular self-tests to ensure it's always ready for use, with a visual status indicator to confirm readiness.
  • Long-Life Battery: The battery and electrodes are combined in a single-use cartridge with a 4-year shelf life, reducing the need for frequent replacements.

HeartSine Samaritan PAD 350P Specifications

Physical Characteristics:

  • Weight: 1.1 kg (2.4 lbs) including Pad-Pak™
  • Dimensions: 20 cm x 18.4 cm x 4.8 cm (7.9 in x 7.25 in x 1.9 in)
  • Construction: High-impact, resistant materials
  • Ingress Protection Rating: IP56 (Dust and Water Resistant)

Defibrillator:

  • Waveform: Self-compensating output waveform that adjusts for patient impedance
  • Energy Output:
  • Shock Advisory System: Analyzes the patient’s ECG to determine if defibrillation is required
  • Charge Time: Typically 8 seconds to 150J
  • Shock Delivery: Semi-automatic; the user must press the shock button when prompted

Environmental Operating Conditions:

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -10°C to 50°C (14°F to 122°F) with Pad-Pak™ installed
  • Relative Humidity: 5% to 95% non-condensing
  • Shock Resistance: MIL-STD-810F 516.5, Procedure I (40 Gs)
  • Vibration Resistance: MIL-STD-810F 514.5, Procedure I, Category 4 Truck Transportation & Category 7 Aircraft – Jet 15,000 feet

Battery and Pads:

  • Battery Type: Lithium Manganese Dioxide (LiMnO2)
  • Battery Capacity: Typically delivers 60 shocks or provides 6 hours of continuous monitoring
  • Pad-Pak: Integrated battery and electrodes, simplifying maintenance
  • Shelf Life: 4 years from manufacture date

Electrodes:

  • Electrode Placement: Pre-connected to AED, placed on patient’s bare chest
  • Electrode Lifespan: 4 years (when stored according to instructions)
  • Pediatric Pad-Pak: Optional pediatric Pad-Pak available for use with patients under 8 years of age or under 25 kg (55 lbs)

Visual and Audio Prompts:

  • CPR Coaching: Provides voice prompts that guide the rescuer through CPR, including the correct rate and depth of compressions
  • Status Indicators: LED indicators provide clear guidance on the status of the device and rescue process
  • Voice Prompts: Clear instructions provided throughout the rescue, in a variety of selectable languages

Data Storage:

  • Internal Memory: Up to 90 minutes of ECG and event data stored
  • Data Retrieval: USB data cable (optional) for downloading data to a PC

HeartSine Samaritan PAD 350P Compatibility

  • HeartSine Samaritan Pad-Pak Adult Defibrillator Pads
  • HeartSine Samaritan Pad-Pak Pediatric Adult Pads
  • HeartSine Samaritan Gateway
